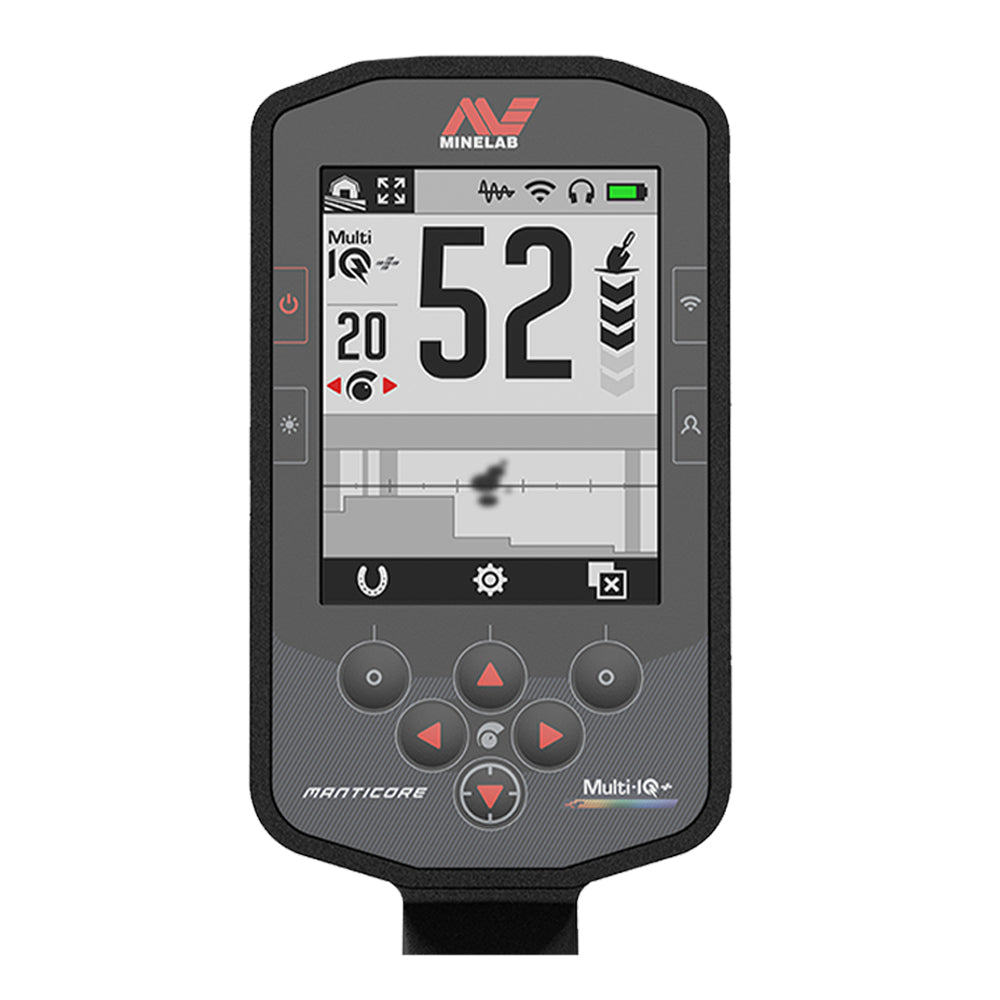

MANTICORE
With Multi-IQ+ is the most powerful, fastest, and precise metal detector in Minelab’s history. The heart of MANTICORE is its super-charged Simultaneous Multi-Frequency (MULTI-IQ+) engine. This feat of innovation generates an incredible 50% power increase over the best-selling detector series of all time: EQUINOX. When combined with advanced 2D Target Identification (ID) and rich audio options, the detectorist has every bit of vital information arriving at their eyes and ears. MANTICORE is an unrivalled detecting experience that pushes the boundaries of detecting to deliver more power, more depth, and more finds.
MULTI-IQ+
Multi-IQ+ is the newest generation Simultaneous Multi-Frequency engine from Minelab, building on the success of the original Multi-IQ. Multi-IQ+ transmits more power through the coil at a wider range of operating frequencies, to light up more targets in the ground. It has completely revamped signal processing providing enhanced discrimination, greater Target ID resolution, improved target separation, and gives you a greater ability to tune discrimination and audio to suit your detecting conditions.
FAST RESPONSE
Find desired targets amongst ferrous trash like no other detector on the market with MANTICORE’s exceptional target separation performance.
ENHANCED DISCRIMINATION
Exceeding expectations with every swing, MANTICORE delivers improved Target ID stability and close target separation. With customisable Ferrous Limits you have unprecedented control to accept ferrous coins, reject complex ferrous targets, or dial in maximum target unmasking in iron.
Key Features
- 10 customisable Search Modes including All-Terrain optimised for inland detecting; Beach optimised for sand, surf and seawater zones; and Goldfield optimised for detecting gold nuggets.
- Take control of audio with MANTICORE. Hear target information the way you like it via superior audio controls including customisable target tones, suppression of Electromagnetic Interference (EMI) chatter and Continuous Pitch (VCO) audio with ferrous tones and genuine threshold detection tone
- No terrain is off limits with MANTICORE — dive up to 5 m (16 ft) for underwater exploration (IP68 Rating) to find hidden targets others can’t reach.
- Improved EMI rejection means it’s possible to operate using higher sensitivity whilst isolating target information — even in the most challenging environmental conditions.
- The daylight may have ended, but that doesn’t mean your hunt has to. With Control Pod Flashlight, Display Backlight with Auto Adjust, and Backlit Keypad, plus Handgrip Vibration, you can power on long after the sun has gone.
Tech Specs
Detect Modes -(Customisable) All-Terrain (5), Beach (4), Goldfield (1)
Operating Frequencies - Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz
Noise Cancel - Auto, Continuous Auto, Manual (-9 to +9)
Ground Balance - Auto, Manual, Tracking
Sensitivity - 1 to 35
Target Identification - Conductive: 0-99 with ferrous indication
2D ID Map - Two-Dimensional ID Map System with Target Trace
Target Tones - 1, 2, 5 - Tone | 1, 2, 5 - Region All Tones
Target Volume - 0 to 25
Target Pitch - 1 to 50
Ferrous Volume - 0 to 25
Ferrous Pitch - 1 to 50
Audio Themes - Normal, Enhanced, Continuous Pitch
Volume Profiles - Simple, Medium, Rich
Threshold Level - 0 to 25
Threshold Pitch - 1 to 50
Recovery Speed - 0 to 8
Ferrous Limits - Upper: 0 to 14 | Lower: 0 to 9
Ferrous Limits Custom - 1 to 4
Depth Indicator - 5 levels
Shaft System - 3-piece highly collapsible carbon-fibre
Weight - 1.3 kg / 2.9 lb
Display - Colour LCD
Display Backlight - Manual (1 to 10), Auto Adjust
Keypad Backlight - On, Off
Flashlight - Low, Medium, High, Off
Handgrip Vibration - On, Off
Battery - Internal rechargeable Lithium-ion battery
Battery Runtime - Approx. 9 hours
Battery Charge Time - Approx. 7 hours
Waterproof - Waterproof to 5 m / 16 ft, IP68
- Included Accessories
USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case
- Software Upgradable
Via USB connection (Windows or Mac OS compatible)
